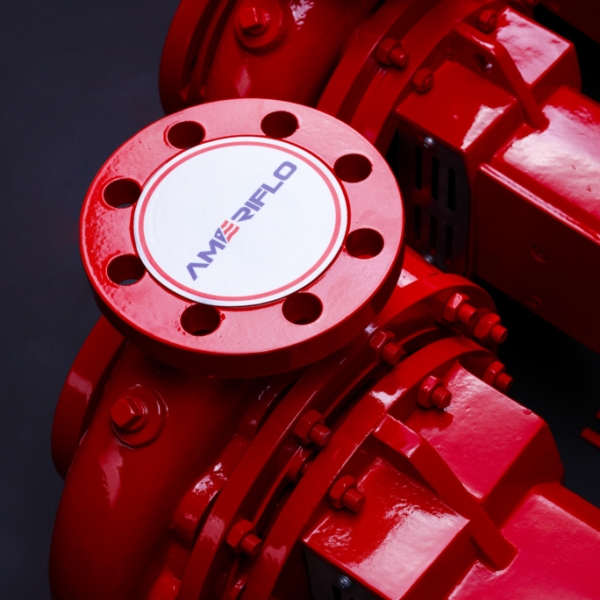

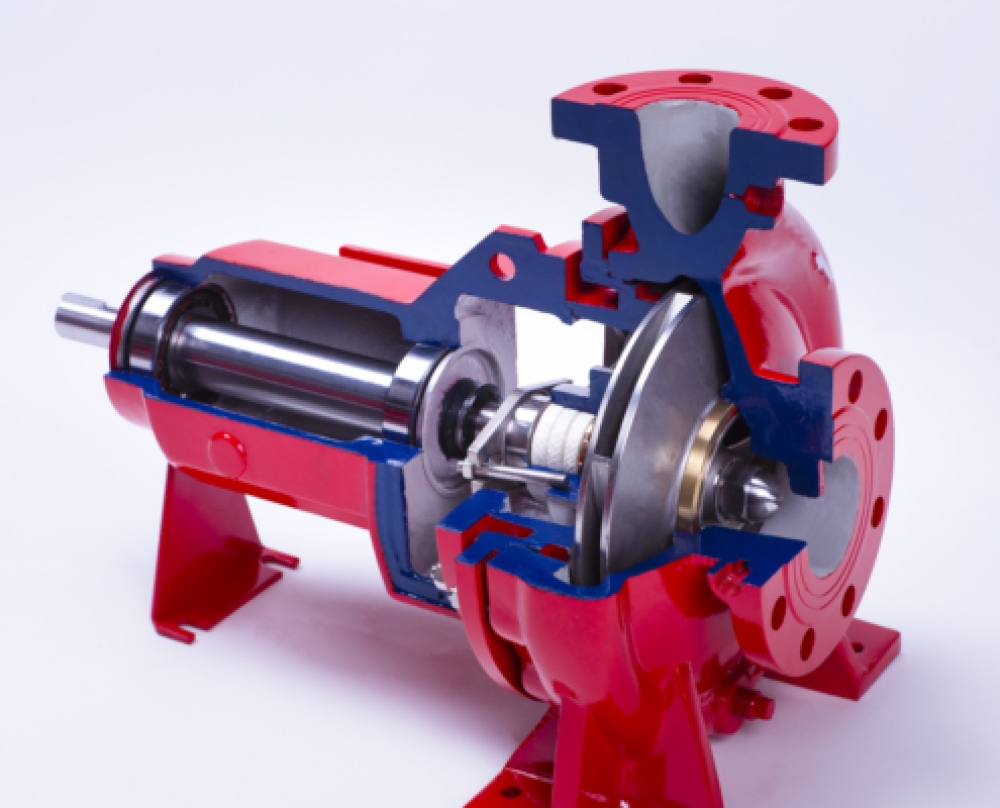

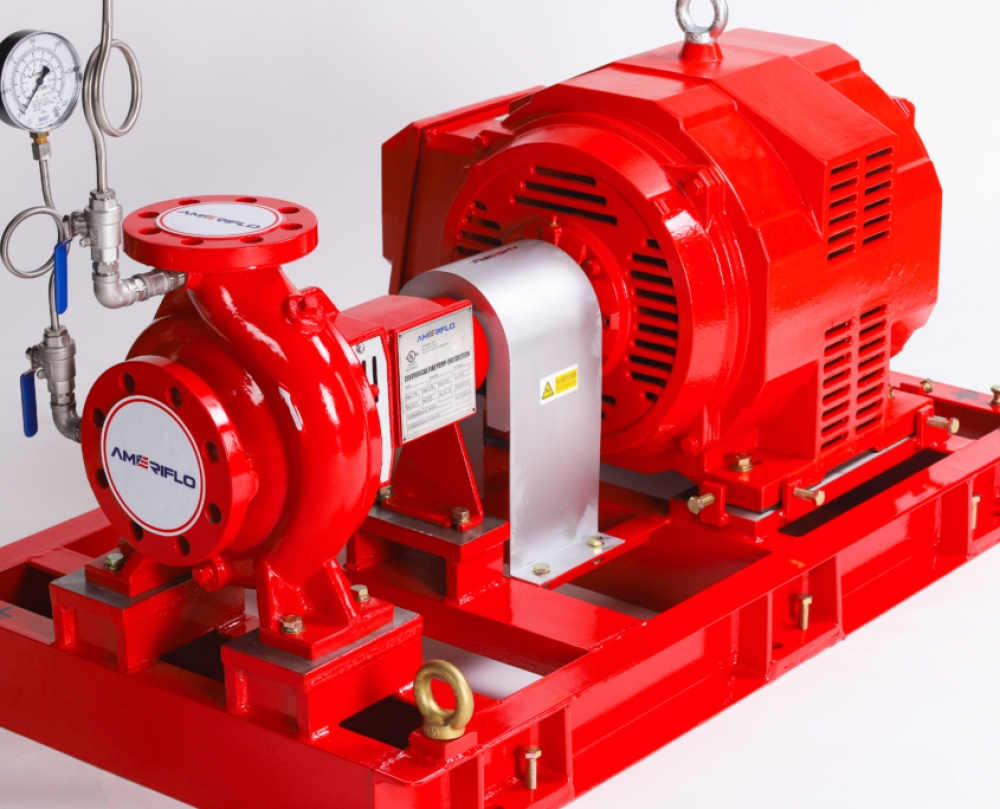

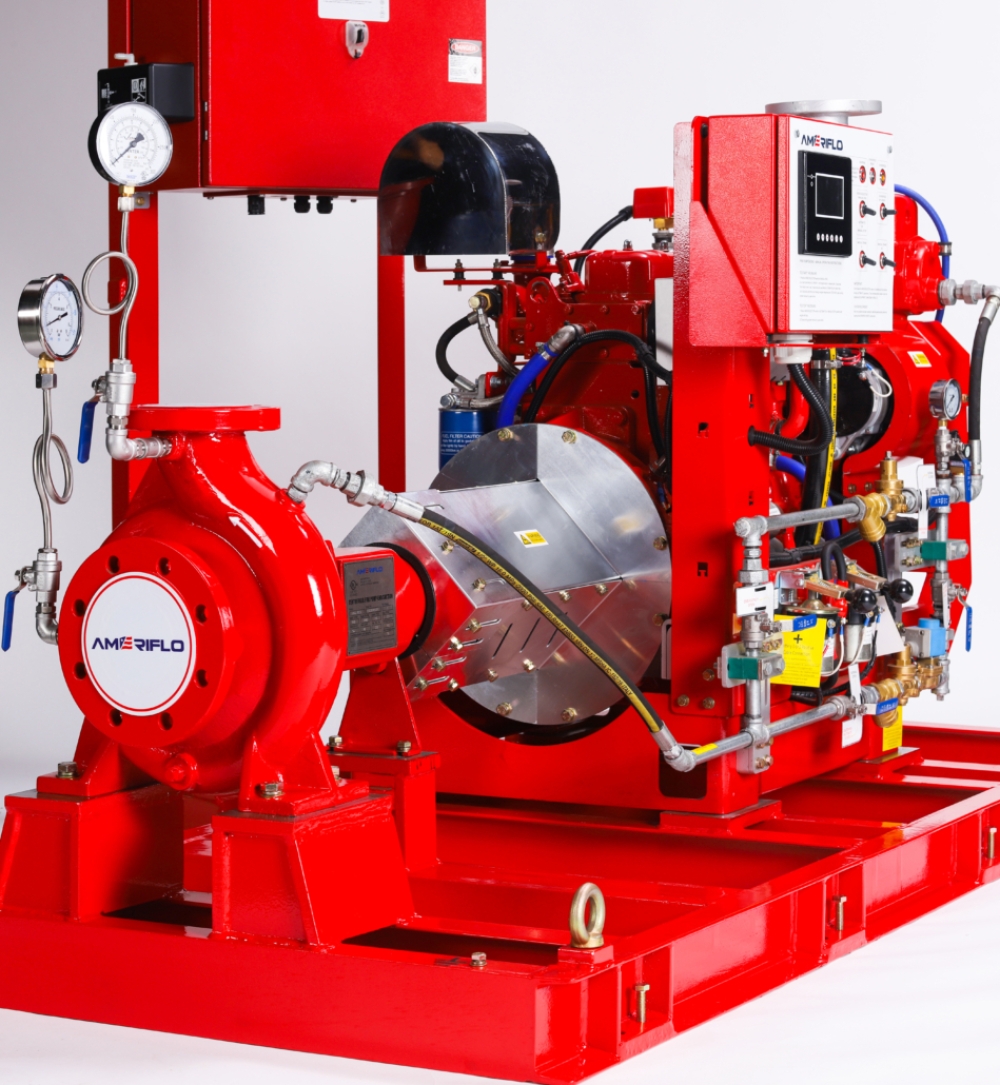

Series 5010 ES

Flex-Coupled End Suction Pumps

The Series 5010 ES End Suction product line is a third party certified, fire protection pump in a flex-coupled orientation with a centerline discharge. This product can be electrically or Diesel engine driven and is a perfect fit for the smaller flow applications found throughout the industry.

Certified Performance:

Flows: 50 GPM to 2,000 GPM [11 M³/HR to 455 M³/HR]
Heads: 40 PSI to 220 PSI [2.75 BAR to 15.2 BAR]
Speeds: 3550 RPM, 2950 RPM

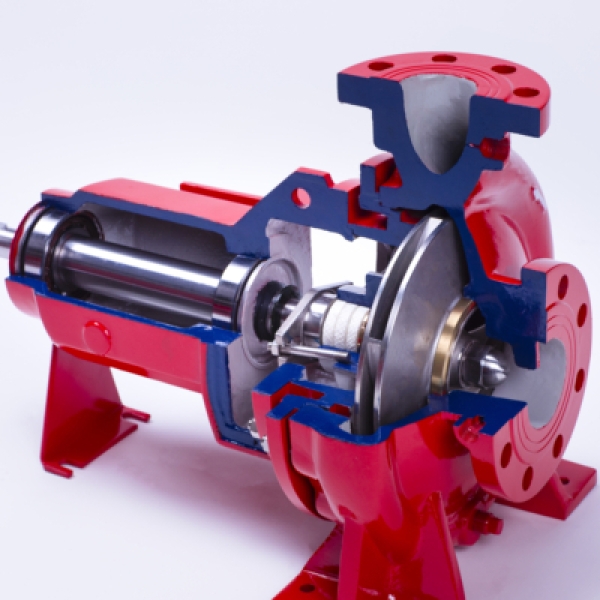

The 5010 Series ES End Suction product line has the following specifiable features and benefits:

Ductile iron casing and rear cover with 250 PSI pressure ratings
Cast integral casing foot that provides casing support when the back pull out assembly is removed
Centerline discharge minimizes residual piping strain and is self venting
Cast integral vortex suppressor located at suction inlet designed to minimize pre-rotation of fluid prior to entering the impeller eye
250# RF suction & 250# RF discharge flanges
Investment cast, 304 stainless steel impellers
420 stainless steel shafting
304 stainless steel shaft sleeve, 304 stainless steel gland and 304 stainless steel lantern ring
304 stainless steel flush lines with 304 stainless steel ball valves
7300 series angular contact bearing at the inboard and outboard locations
Modular power frame assembly minimizes number of parts needed

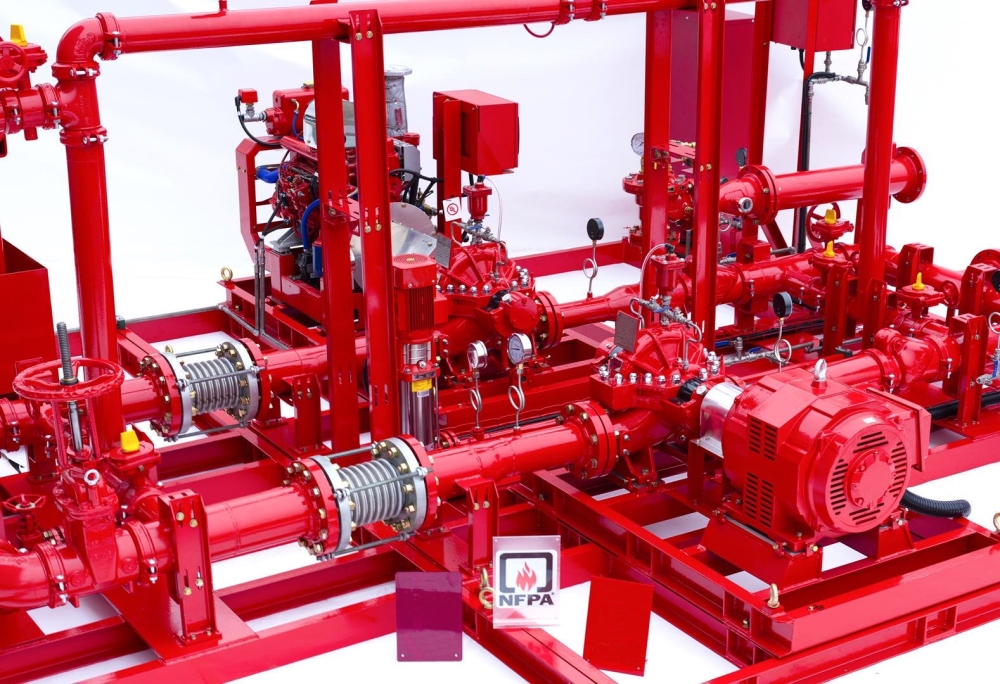

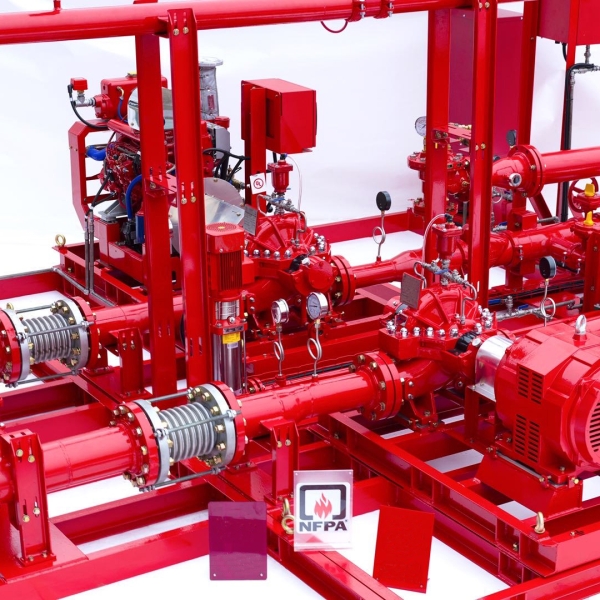

FIRE FIGHTING DIESEL PUMP UL/FM & NFPA20 Ameriflo USA

Download file

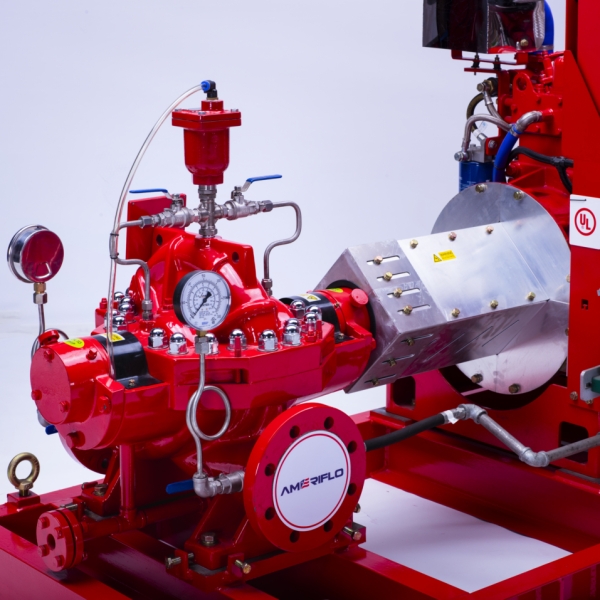

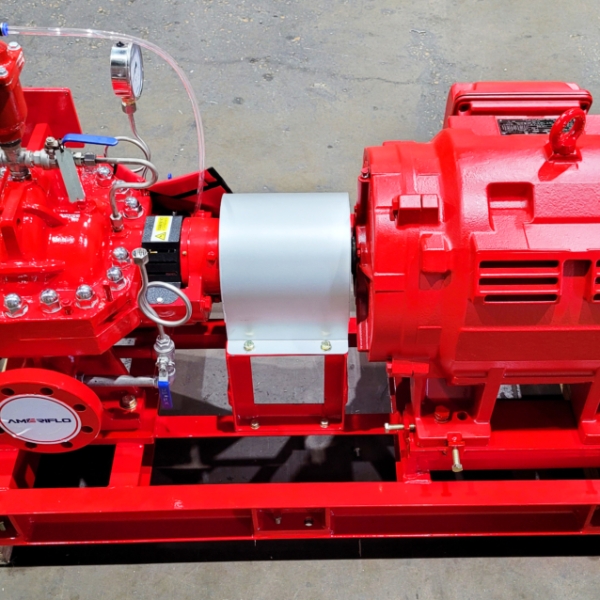

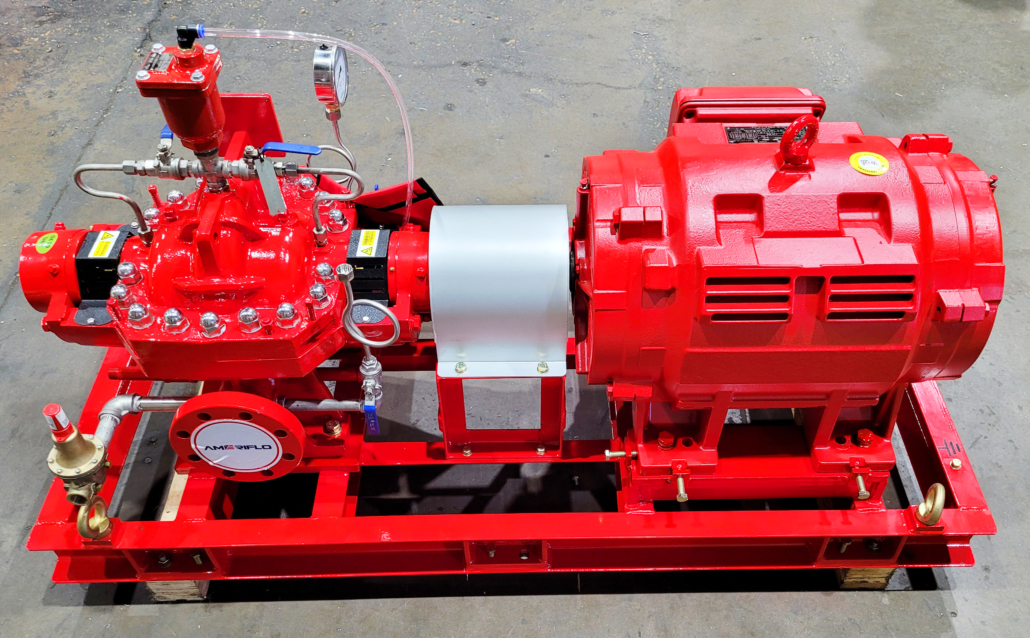

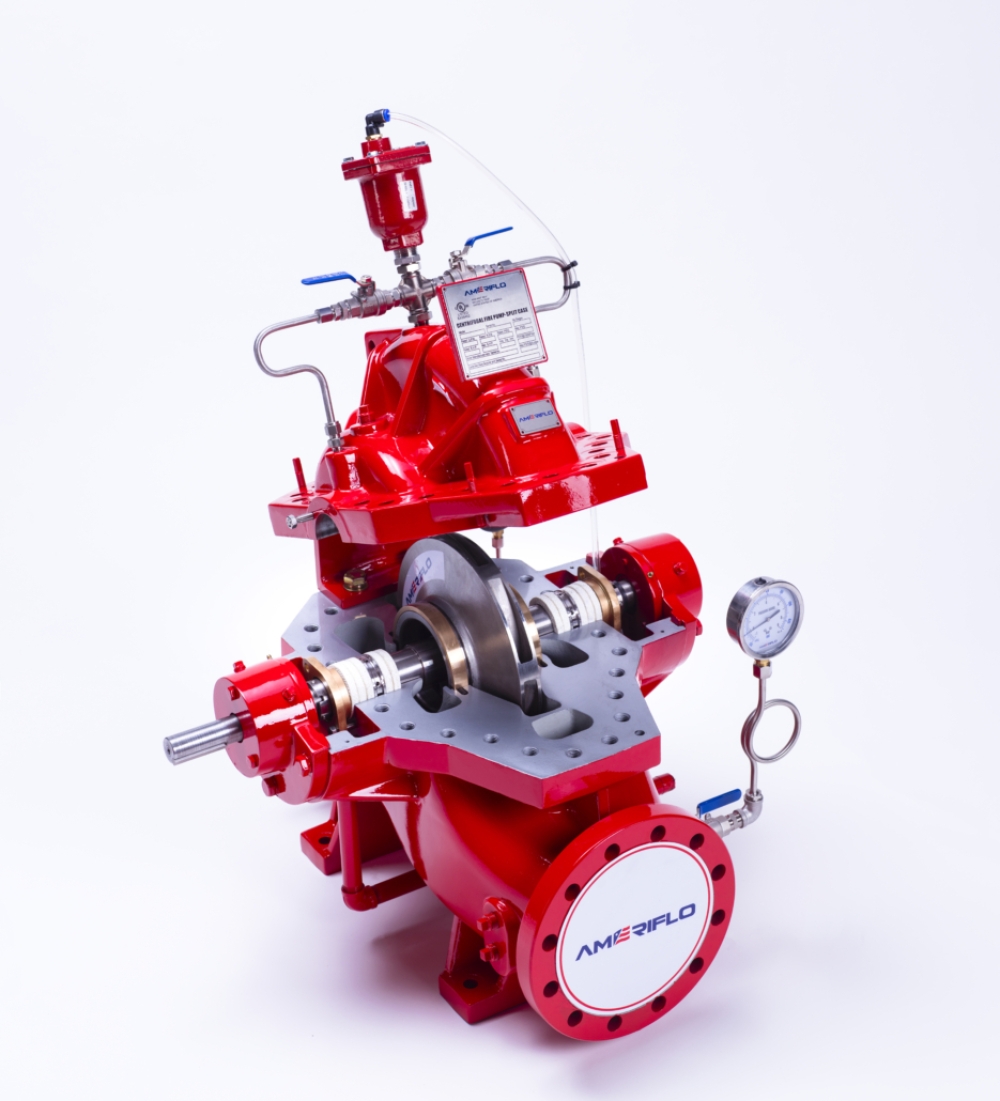

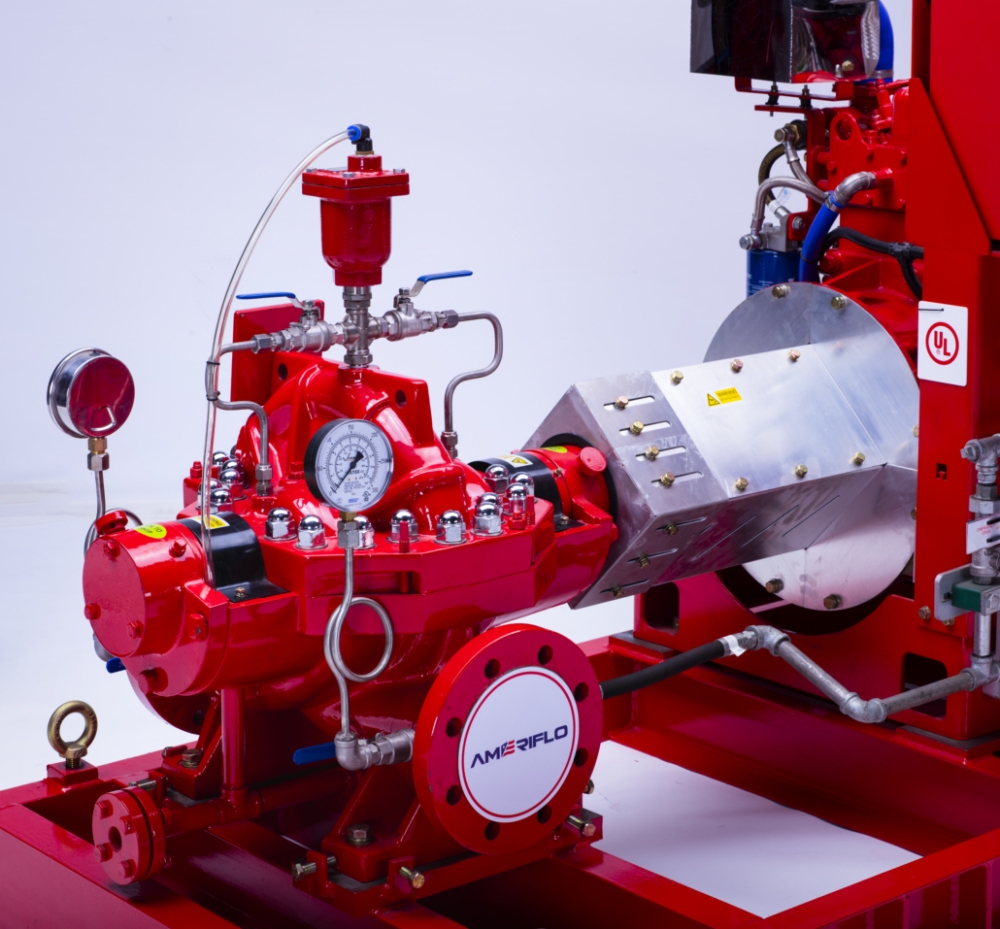

Series 5030 SC

Split Case Pumps

FEATURES & BENEFITS

The Series 5030 SC Split Case product line is a third party certified, fire protection pump in a flex-coupled orientation with an axially split casing assembly. This product can be electrically or Diesel engine driven and is a perfect fit for the smaller and larger flow applications found throughout the industry.

Certified Performance:

Flows: 300 GPM to 8,000 GPM [68 M³/HR To 1,817 M³/HR]
Heads: 40 PSI to 367 PSI [2.75 BAR to 25.3 BAR]
Speeds: 3550 RPM, 2950 RPM, 2600 RPM, 2350 RPM, 2100 RPM, 2000 RPM, 1760 RPM, 1480 RPM

The 5030 Series SC Split Case product line has the following specifiable features and benefits:

Ductile iron, ribbed casing with 400 PSI pressure ratings
Double volute casing designed to reduce radial loads
250# RF suction & 250# RF discharge flanges
High efficiency impeller design that lead the industry on lower horsepower
Investment cast, 304 stainless steel impeller
420 stainless steel shafting
304 stainless steel shaft sleeves, 304 stainless steel glands and 304 stainless steel lantern rings
304 stainless steel flush lines with 304 stainless steel ball valves
6300 series deep groove bearing at the inboard and outboard locations
Modular rotating assembly groups minimizes number of parts needed
Inboard & outboard bearing housings are removable and replaceable without removing the casing top
Casing top has pry bar locations and jackscrews to aid in pump disassembly
Full optional metallurgy support for seat water applications (all bronze, all 2205 & 2507 super duplex stainless steel)
