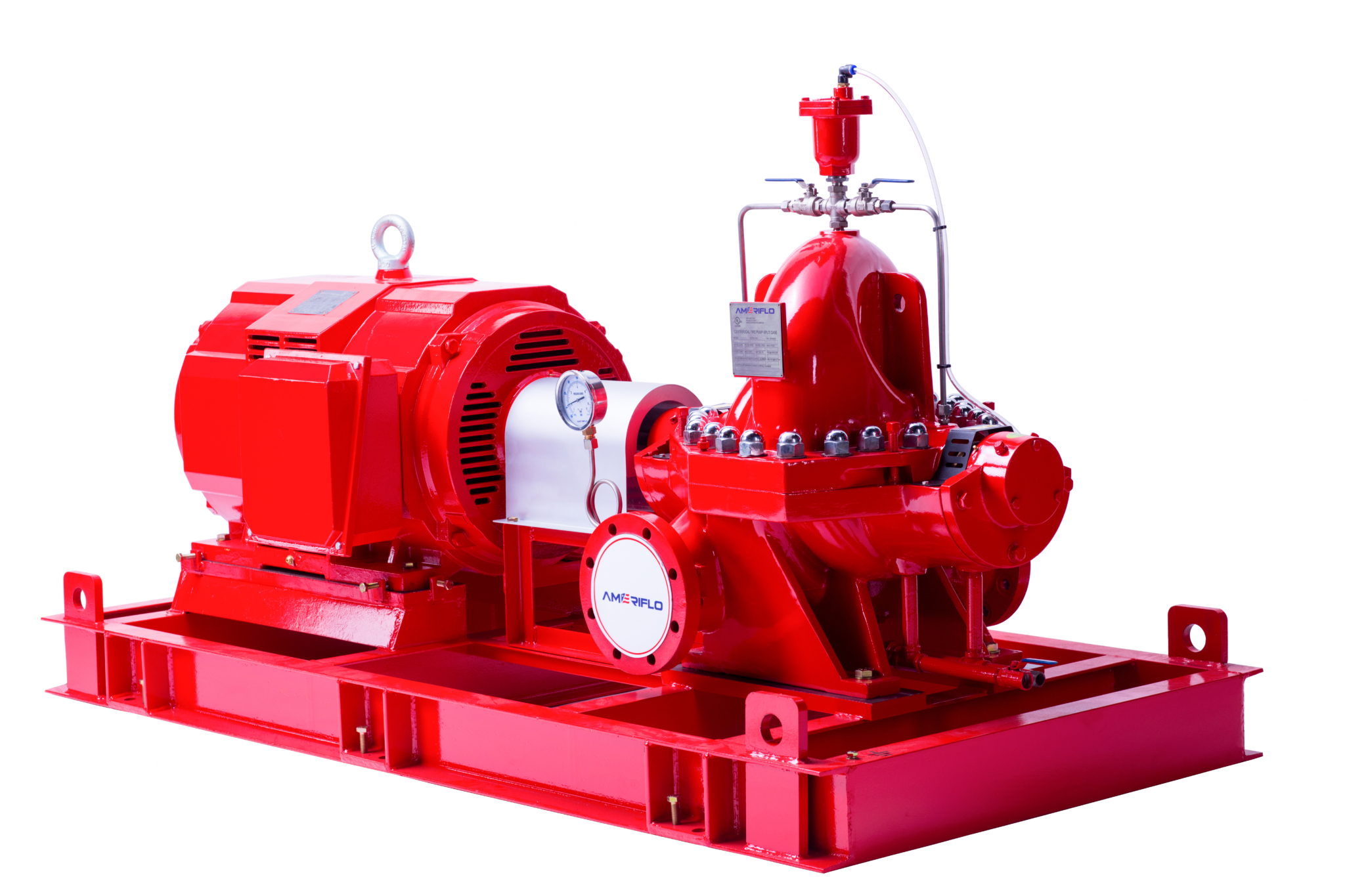

Fire fighting electrical pump with UL/FM & NFPA 20

Series 5030 SC(2)

Multistage Split Case

FEATURES & BENEFITS

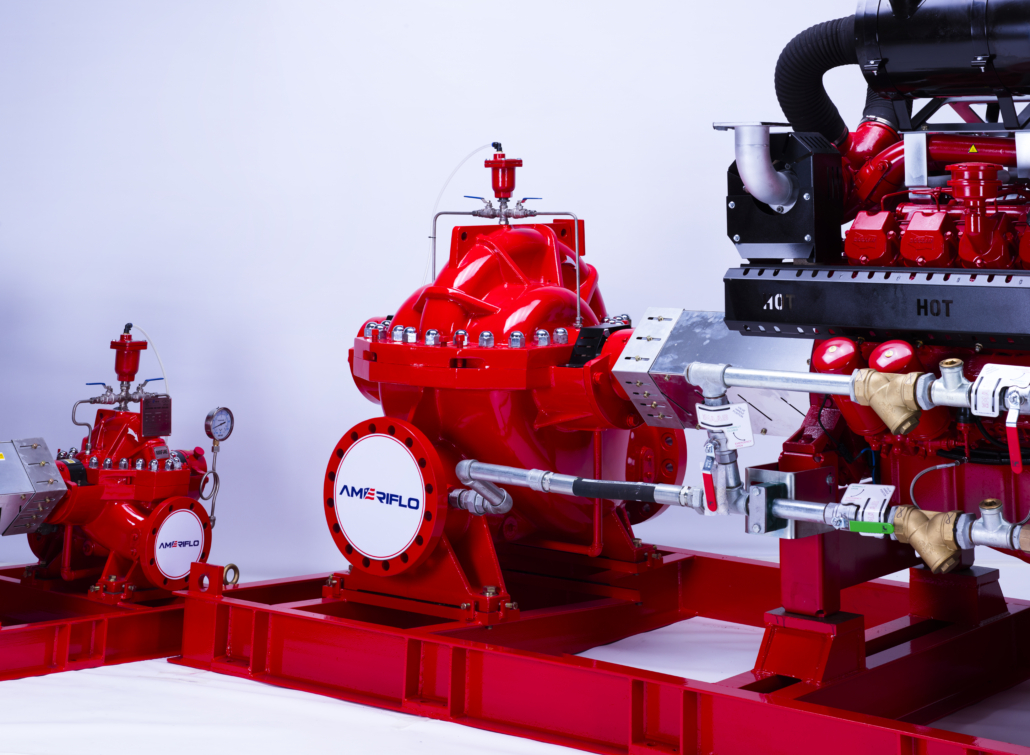

The Series 5030 SC(2) Multistage Split Case product line is a third party certified, fire protection pump in a flex-coupled orientation with an axially split casing assembly.  This product can be electrically or Diesel engine driven and is a perfect fit for the smaller and larger flow applications found throughout the industry.

Certified Performance:

Flows:  500 GPM to 1,500 GPM [114 M³/HR to 341 M³/HR]
Heads:  282 PSI to 610 PSI [19.4 BAR to 42.1 BAR]
Speeds:  3550 RPM, 2950, 1760 RPM

The 5030 Series SC(2) Multistage Split Case product line has the following specifiable features and benefits:

• Ductile iron, ribbed casing with 400 PSI pressure ratings
• Two-stage, double volute casing designed to reduce radial loads
• 250# RF suction & 250# RF discharge flanges
• High efficiency impeller design that lead the industry on lower horsepower
• Investment cast, 304 stainless steel impeller
• Proprietary Aegis buffer chamber that reduces pressure on second stage stuffing box
• 420 stainless steel shafting
• 304 stainless steel shaft sleeves, 304 stainless steel glands and 304 stainless steel lantern rings
• 304 stainless steel flush lines with 304 stainless steel ball valves
• 6300 series deep groove bearing at the inboard and outboard locations
• Modular rotating assembly groups minimizes number of parts needed
• Inboard & outboard bearing housings are removable and replaceable without removing the casing top
• Casing top has pry bar locations and jackscrews to aid in pump disassembly
