Rotory Lobe Pump

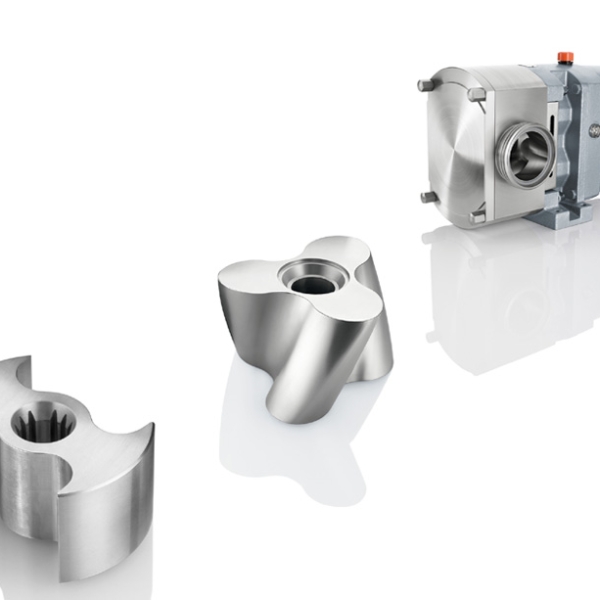

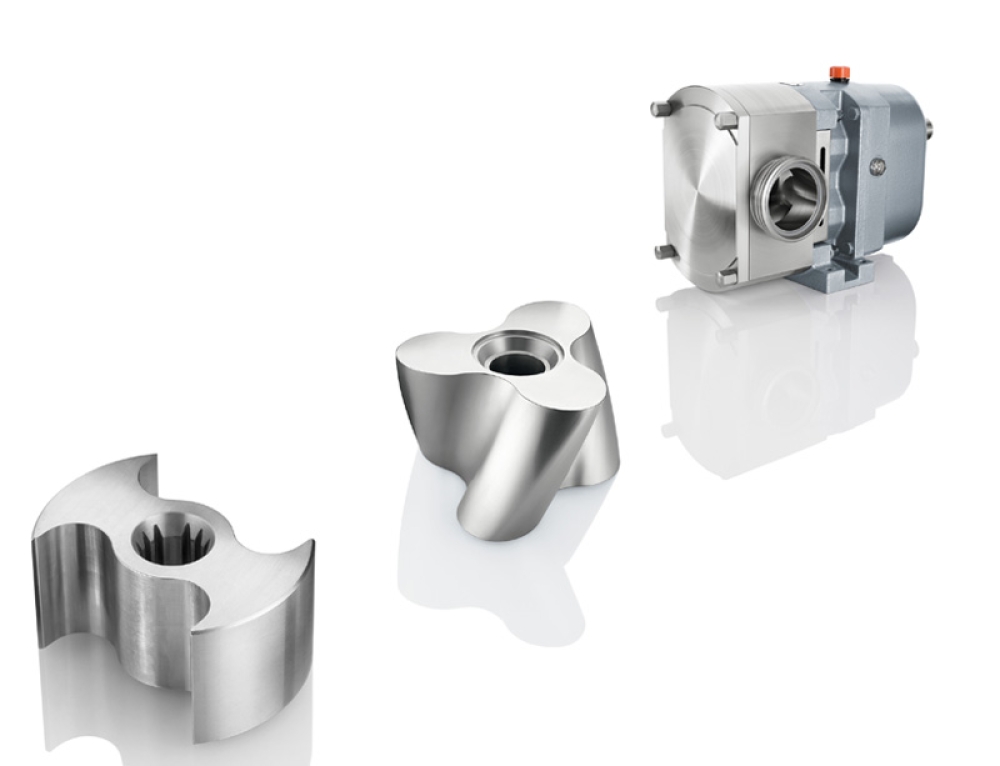

Fristam Rotory Lobe Pump

FRISTAM FL / FL3

POSITIVE DISPLACEMENT PUMPS

The FL is universally suitable for many standard applications. It is hygienic, gentle, low-maintenance, durable and economical.

The Fristam FL3 features unique helical three-winged rotors and is specifically designed for revolution speeds of up to 1,000 min–1 as well as for CIP return processes. This saves you an additional pump in a bypass line.

All models are compact, very easy to clean as well as fully capable of CIP and SIP.

SPECIFIC CONSTRUCTION

All of the FL series’ pumps have a state-of-the-art system of low-slip lobes rotating free of contact in opposite directions, thus ensuring high efficiency even with low viscosities or at high temperatures. The FL’s symmetric design allows for a reversal of the rotating direction, enabling the pump to transport materials in both directions.

TECHNICAL DETAILS

  • 11 different sizes
  • Discharge pressures up to 12 bar
  • Flow rates up to 70 m3/h
  • Viscosities up to 1,000,000 mPa.s
